DUWELL CZ purlin machine can interchange the C purlin and Z purlin in one machine with short time. And adjust the sizes automatically. The customer just need set the web and flange size on the controller, the machine will change the sizes automatically. The machine with universal cutting device, no need change cutting tool when change sizes.

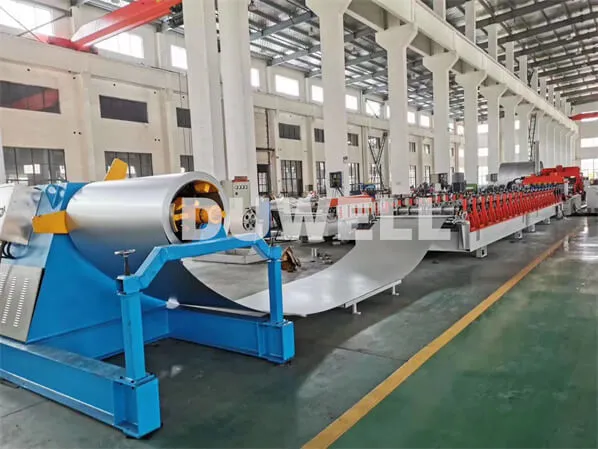

Uncoiler: Loading the steel coil
Guiding and Leveler: Guiding the sheet into roll former

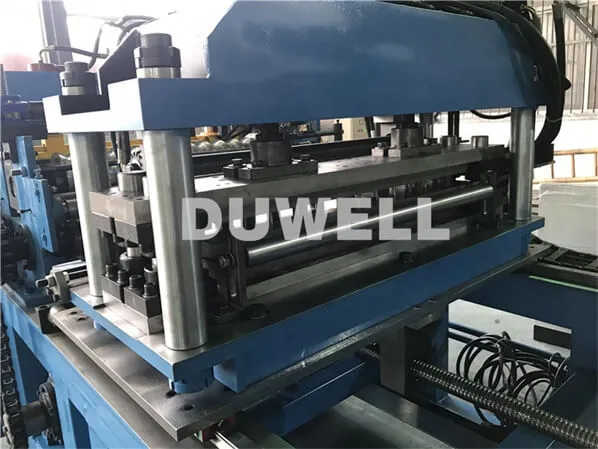

Profiling Roll Forming Machine: For precise profile forming.
Hydraulic punching device: Punch the bolt holes on the sheet
Hydraulic bending and cutting device: For bending the panel and precise cuts.
Working process
5 ton decoiler —→ Guiding and leveling device—→Hydraulic punching device—→Roll-forming Machine —→Adjusting —→ Hydraulic cutting—→ Run out table
Machine parameters
Uncoiler: 5 Tons hydraulic decoiler
Forming station: 20 stations
Driving type: Gear box transmission
Main motor power: 15KW x 2sets
Shaft Dia: 110mm
Roller material: GCr15 with quenching and chrome plating on surface. Hardness: HRC58~60
Hydraulic system: 7.5kw*3 sets
Electrical system: Delta control system
Cutting type: Hydraulic cutting
Punching system: Hydraulic punching with servo motor
Cooling system: water cooling system
Material thickness: 1.0-1.5mm，Galvanized sheet
Forming speed: 16m/min
We make the machine according to customer’s required material thickness. 1.0~2.0mm is common used material thickness.
We have two types of machine: one is to make the forming, punching , bending and cutting in one line. The other type is to make the bending separately. The customer can choose the suitable solution according to their requirement.
It needn’t change the cutting tool, we use universal cutting device, the customer just need adjust the cutting tool to suit the purlin sizes.
The working speed is 15~25meters/min, according to the hole distance and cutting length.
Yes, it can set the hole distance in vertical automatically on controller and adjust the hole distance horizontal manually according to purlin sizes.
Yes, we make the machine according to customer’s requirement.
