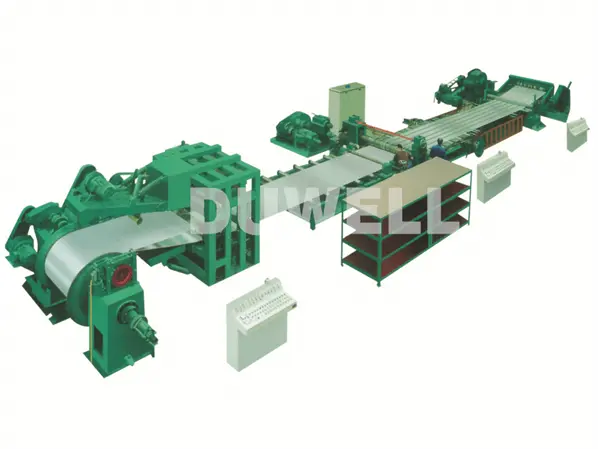

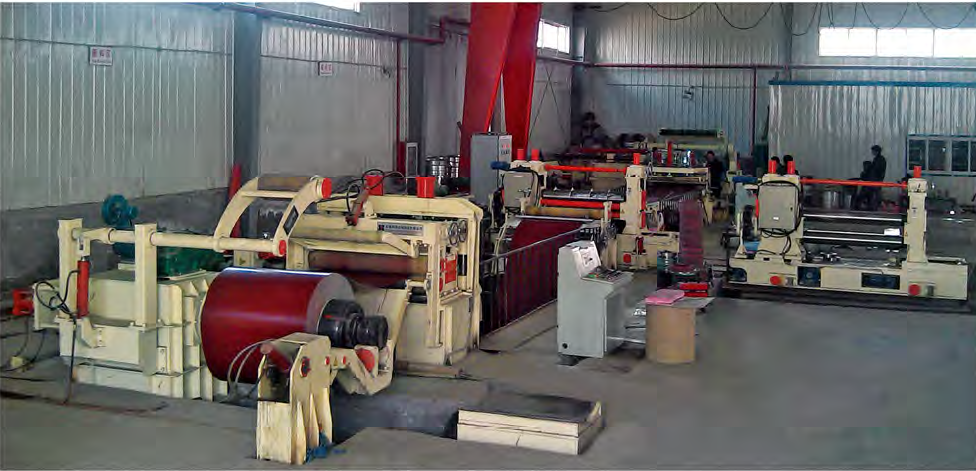

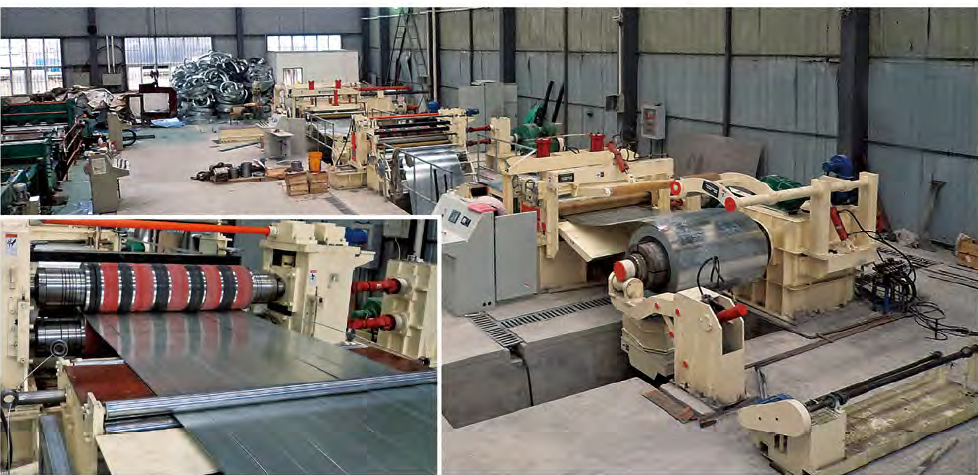

Slitting line is a kind of longitudinal cutting or shearing machine which can slit the steel coils into narrow coils. It includes the decoiler, slitter and recoiler to do the complete production.
No | Name | Quantity |
1 | Hydraulic entry coil car | 1set |
2 | Hydraulic de-coiler | 1 set |
3 | Hydraulic press and feed device | 1 set |
4 | Transition table I | 1 set |
5 | Side guide device | 1 set |
6 | Slitting machine | 1 set |
7 | Scrap winder | 1 set |
8 | Transition table II | 1 set |
9 | Tension stand | 1 set |
10 | Recoiler | 1set |
11 | Hydraulic exit coil car | 1set |
12 | Hydraulic system | 1 set |
13 | Electrical control system | 1 set |

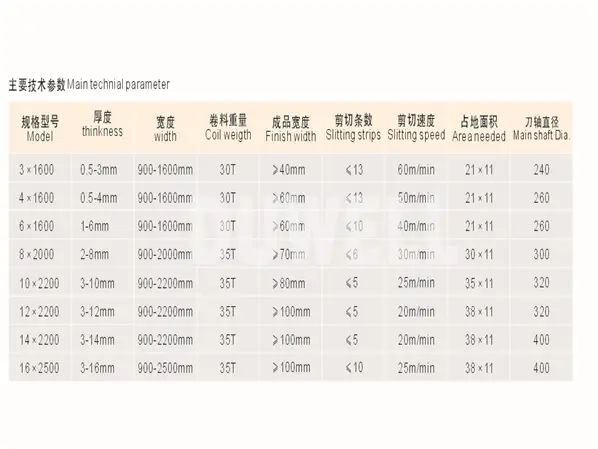

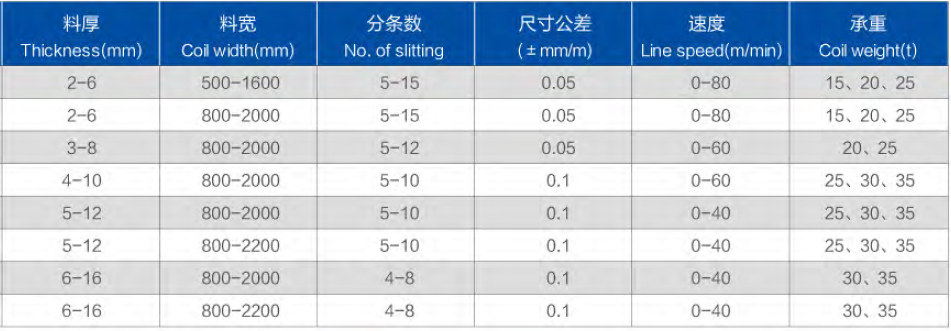

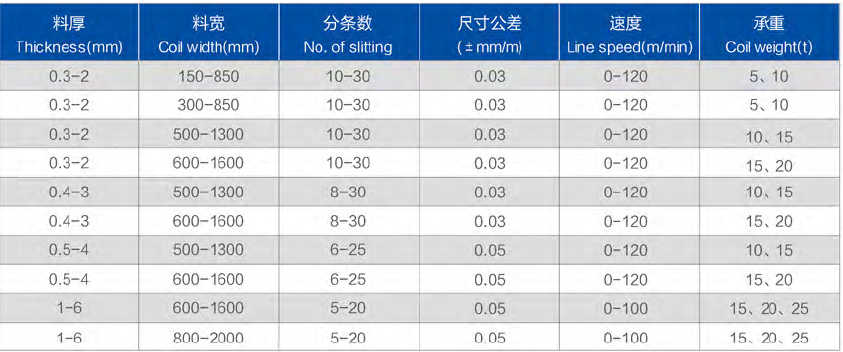

Main parameters
application: CRS, GI and PPGI steel sheet
coil weight :15T
Thickness: 0.3-3mm
width of coil material: 500-1600mm
coil I.D: ф508
coil O.D: ф1600mm
line speed :0-80m/min
the diameter of slitting blade shaft: ф180
slitting blade: φ180Xφ360X20
material of slitting blade: 9CrSi
the hardness of slitting blade: HRC58°-60°
recoiler I.D of scrap winder: φ420
recoiler I.D: φ508
tolerance of width error: ≤±0.05mm/2M
power:380V/50Hz/3Ph
Composed devices
Hydraulic entry coil car
Hydraulic de-coiler
Hydraulic press and guide and pinch device
Hydraulic head-cutting machine
Looper I
Side guide device
Slitting machine
Scrap winder
Looper II
Hydraulic damping and pre-dividing and press device
Recoiler
Hydraulic exit coil car
Electric control system
Hydraulic system
We can work the steel material thickness from 0.3~16mm.
Yes, We can make different gutter profiles in one machine by quick change construction （Change cassette type）to save cost and space for customers.
