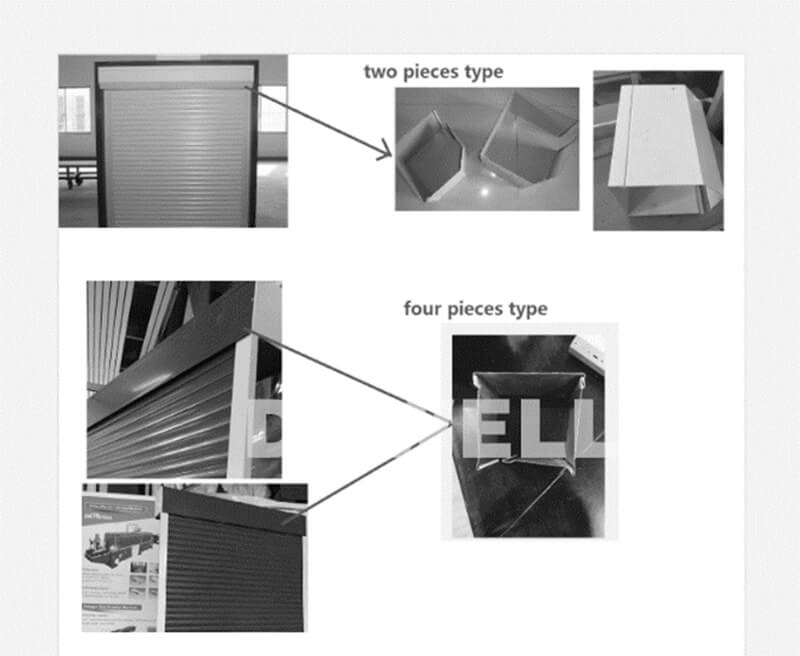

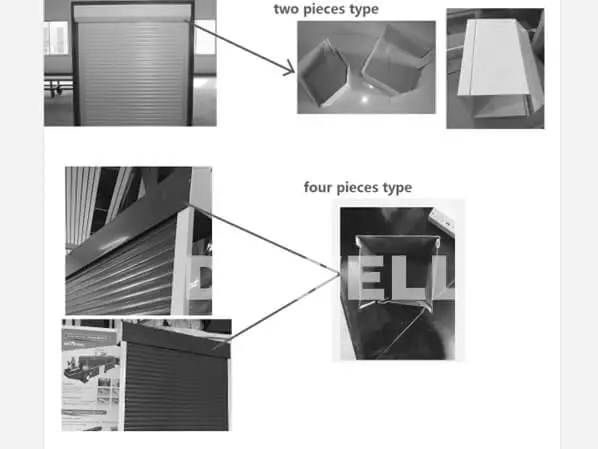

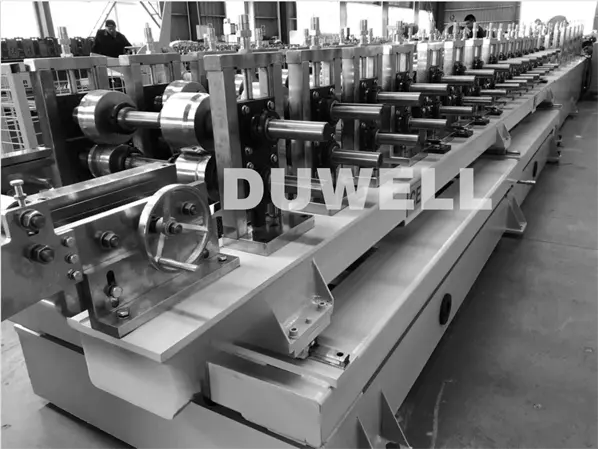

DUWELL is professional in the whole range machines of roller shutterdoors, of course including this shutter box machines. For two pieces type shutter box, it need two sets of separate machines for cover and back panels. Both machines can change sizes automatically including al the sizes from 150~250mm. For four pieces type shutter box, it need three sets of separate machines, Also adjustable sizes automatically.

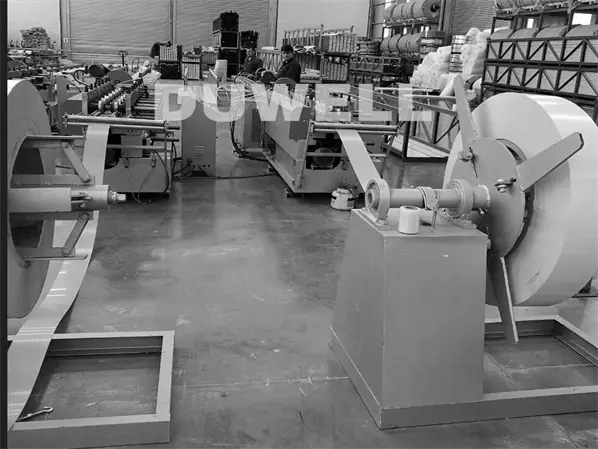

Uncoiler: Loading the steel coil
Profiling Roll Forming Machine: For precise profile forming.
Adjusting device: For final slats straight adjusting.
Saw cutting: For precise cuts.
Out Table: Stacking the finished slats.
Controller: Control whole line with setting length and numbers.
Main specification
Suitable plate: Aluminum or steel with customized thickness
Material of rollers: Gcr15, with heat treatment and chrome plating on the surface. HRC58~62
Material of shaft: 45# steel, with heat treatment ,
Cutting: saw cutting
The whole machine is controlled by PLC.
Working schedule

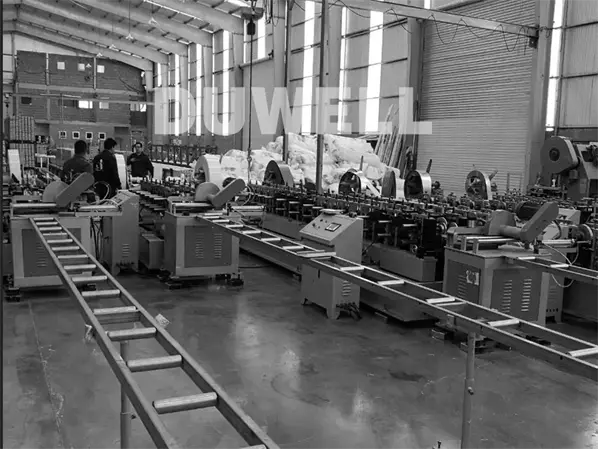

Put the steel coil on the un-coiler—→Guiding—→Roll former—→Cutting system—→Out table
Yes. DUWELL shutter box machine can adjust the different sizes automatically, the customer just need set the sizes on controller, the machine will move sizes automatically, easy and fast for customers.
90 days including production and final testing working.
It uses saw cutting for shutter box machine, it need not change cutting when change sizes.
