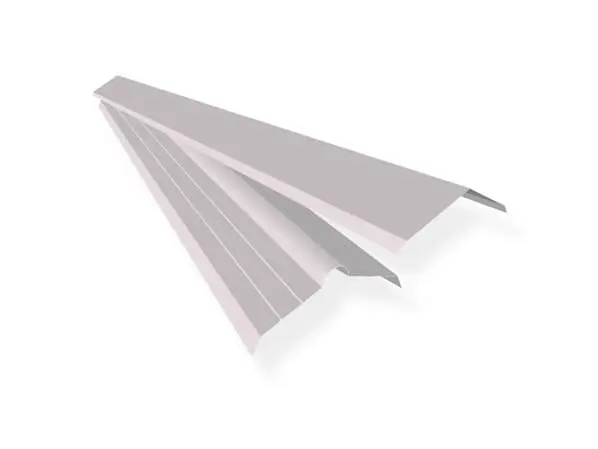

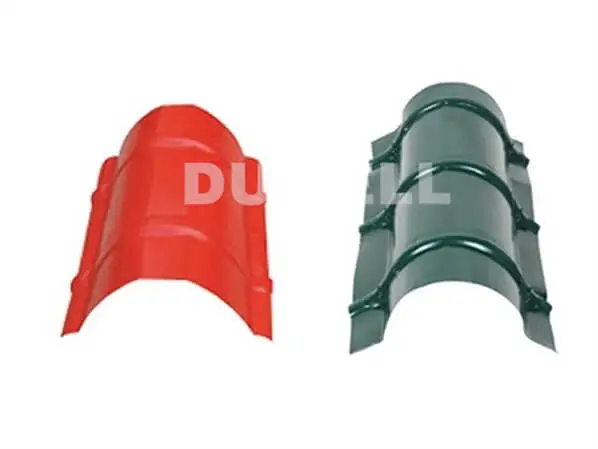

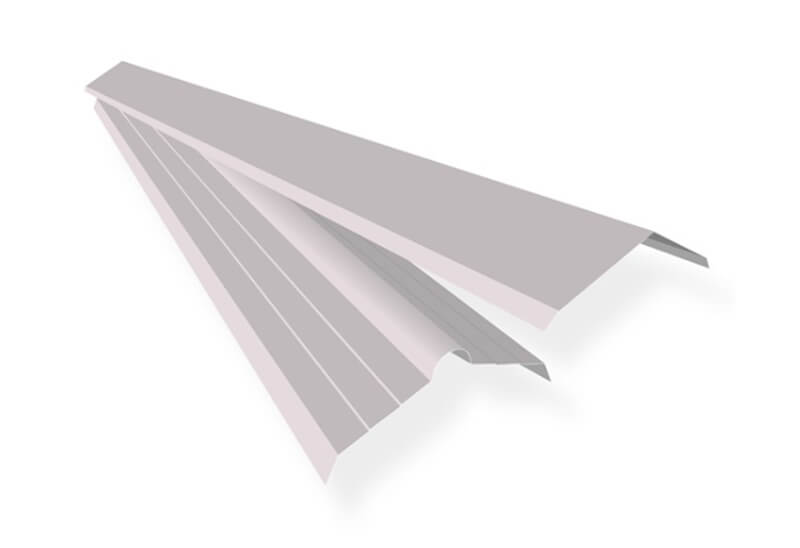

Roof ridge roll forming machine consists decoiler, roll forming , cutting and stacking, complete production line, controlled by PLC system. The customer just set the length and numbers on controller. Also we can make different roof ridges in one machine, by quick change (Change cassette) or by double layer roof ridge machine.
Uncoiler: Loading the steel coil
Guiding : Guide in the material

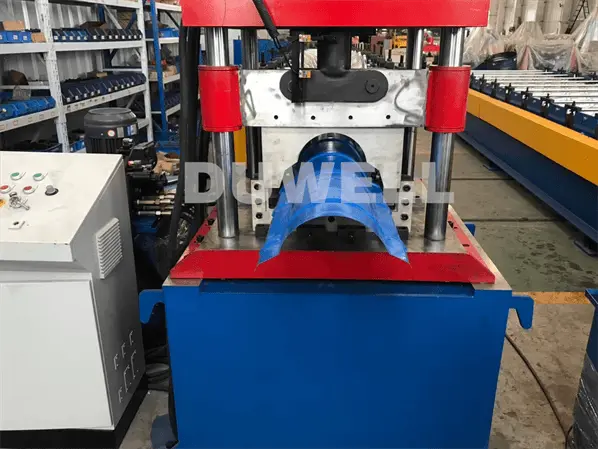

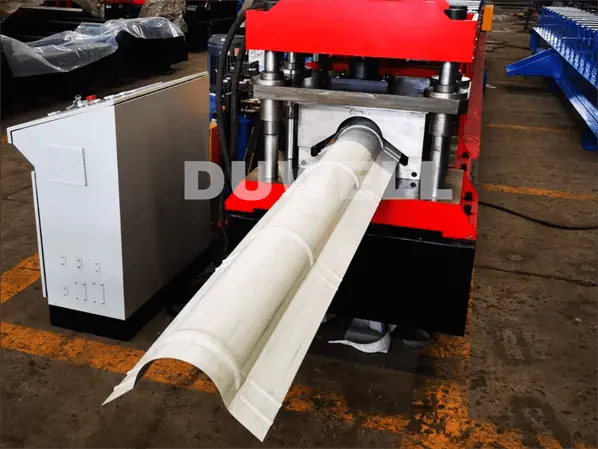

Profiling Roll Forming Machine: For precise profile forming.

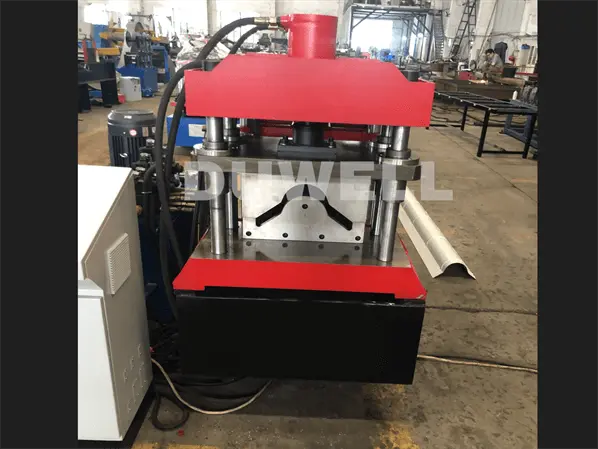

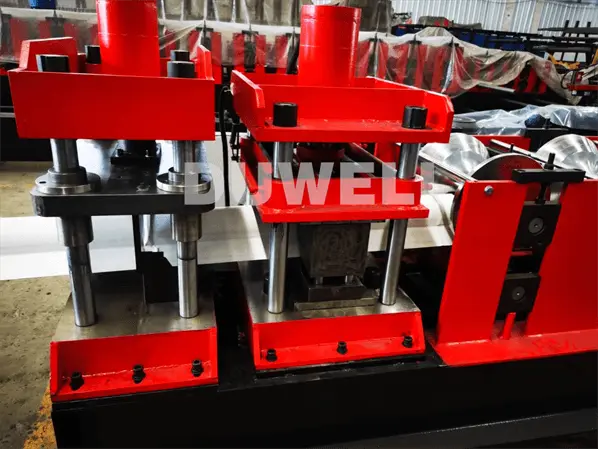

Hydraulic cutting device: For precise cuts.
Stacking Table: Stacking the finished products
Working process
Decoiler —→ Guiding—→Roll-forming Machine—→ Hydraulic cutting—→ Stacking
Machine parameters
Suitable plate of the rolling: PPGI or GI with thickness 0.3~0.8mm,
Working speed: 15~25 meters/min
Forming stations: According to customer’s roof profiles
Roller material: Cr12Mov (Cr12) with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Main machine power: 5.5 KW

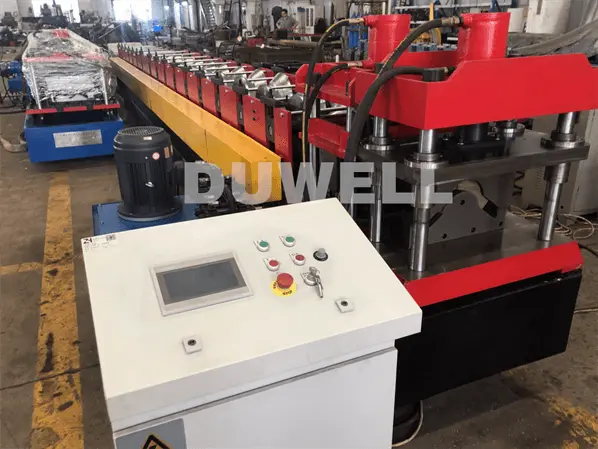

Control system: The whole machine is controlled by PLC system.

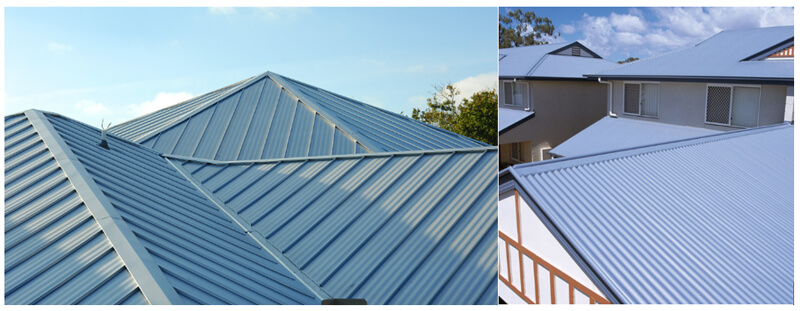

We make the machine according to customer’s required profiles, including trapezoid roof, corrugate roof panel and tile roof panel machines.
Yes, We have one type of double layer roof machine, which can make two different roof profiles in one machine.
