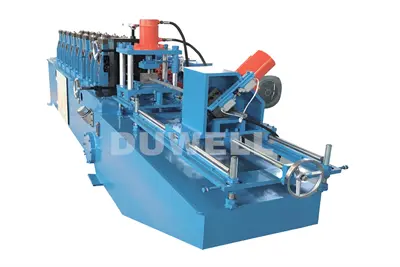

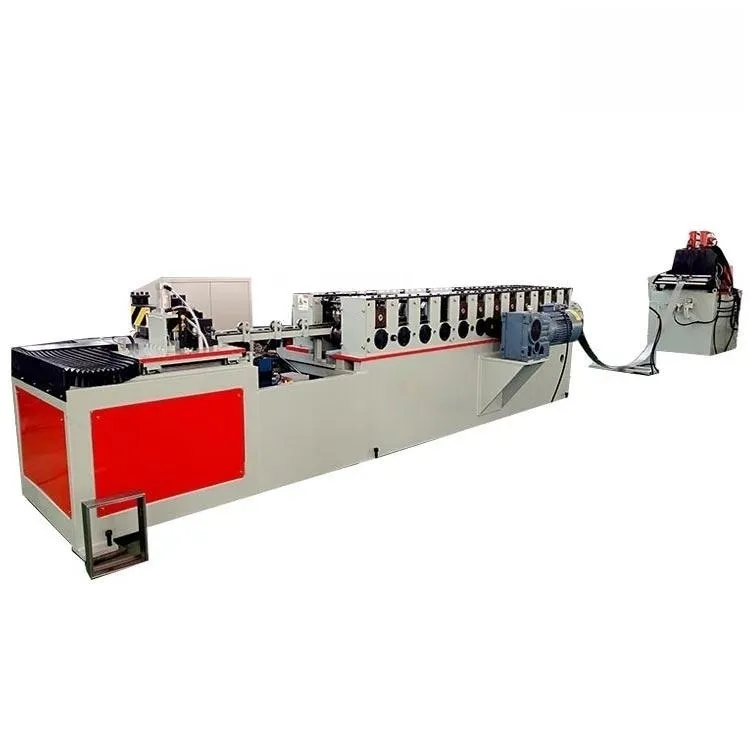

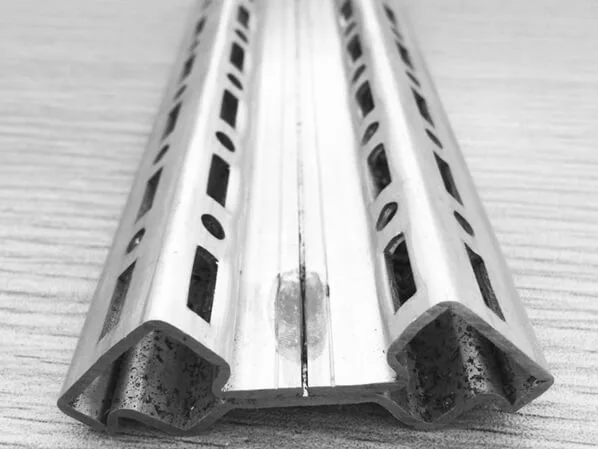

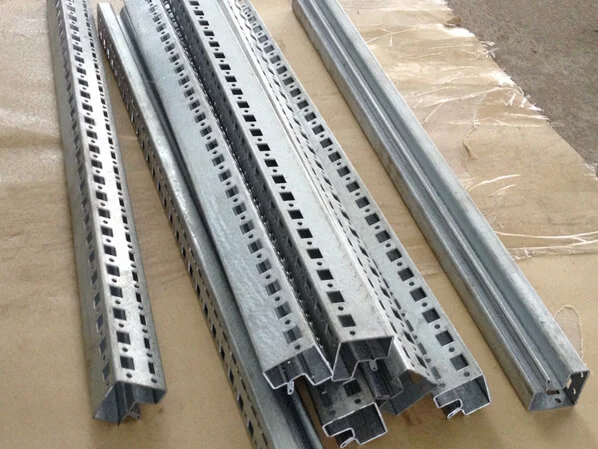

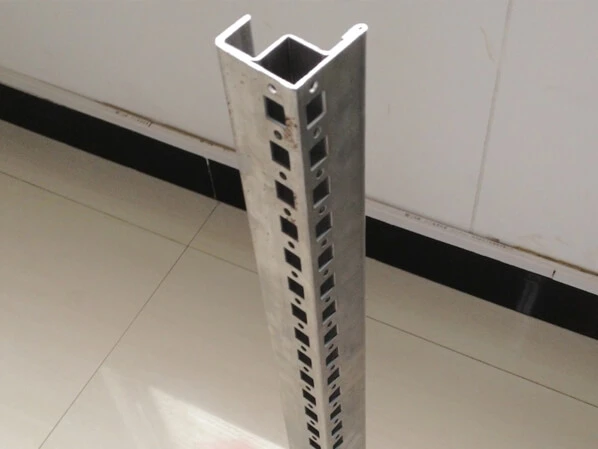

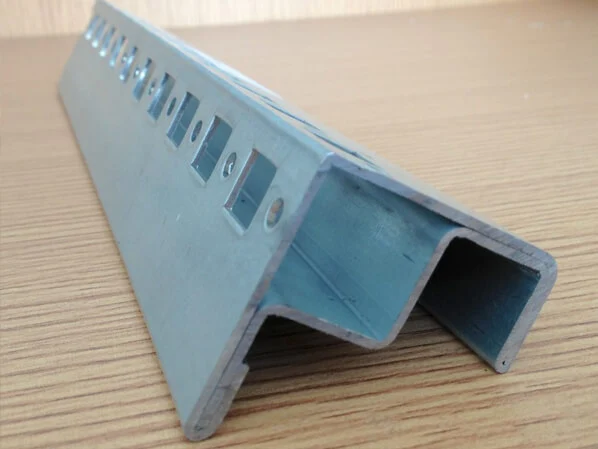

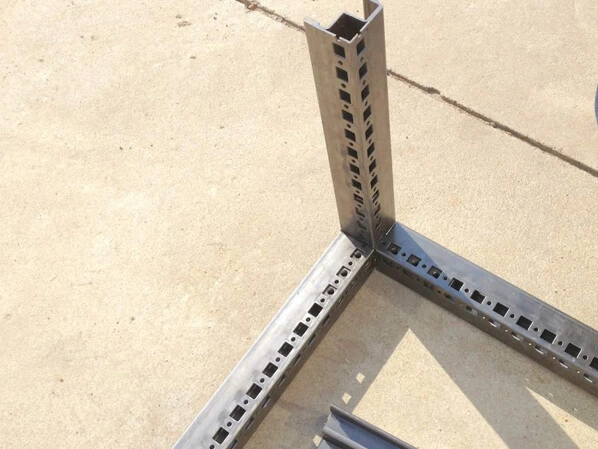

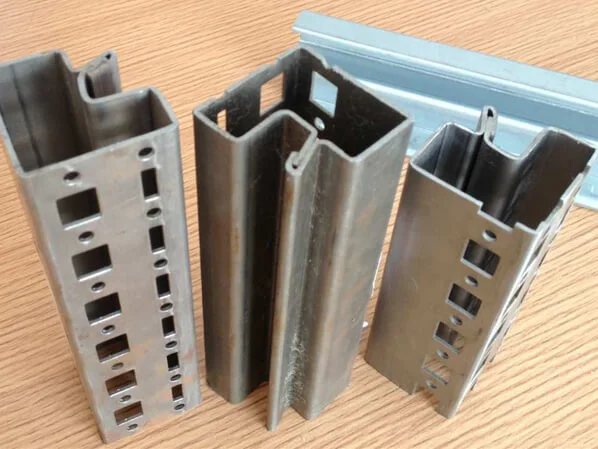

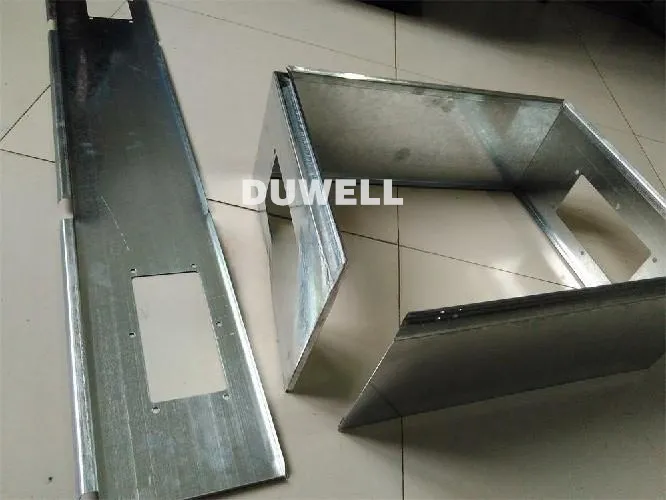

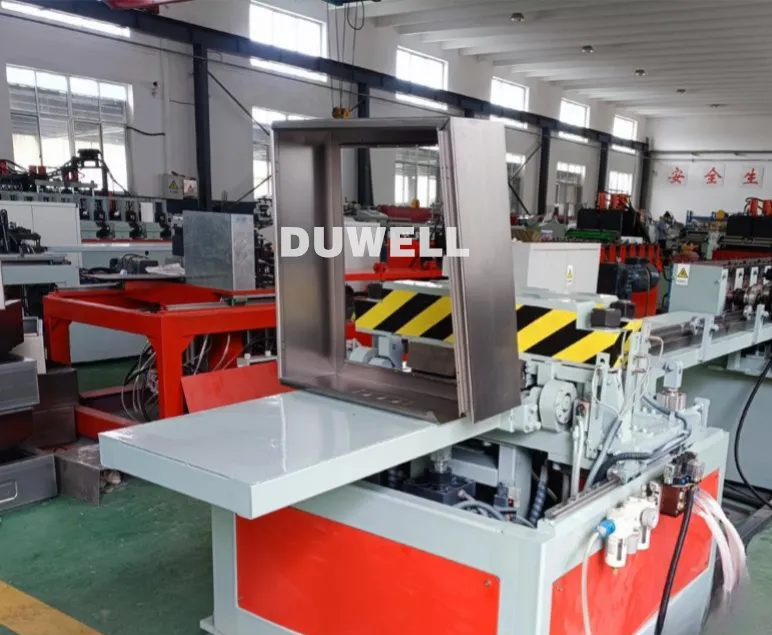

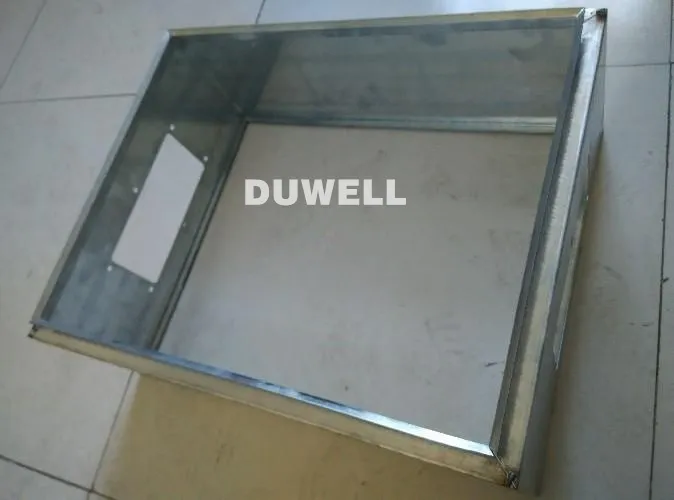

DUWELL cable tray roll forming machine can make the C and U profile in one machine, with adjustable sizes 100~600mm width and 50~100mm height in one machine, with thickness range 0.8~1.5mm. And adjust the sizes automatically. The customer just need set the width and height size on the controller, the machine will change the sizes automatically. The line includes decoiler, leveler, servo feeder and pressing machine, hydraulic cutting device, roll forming, out table and controller.
Uncoiler: Loading the steel coil
Leveling : Leveling the sheet flat before entering pressing machine

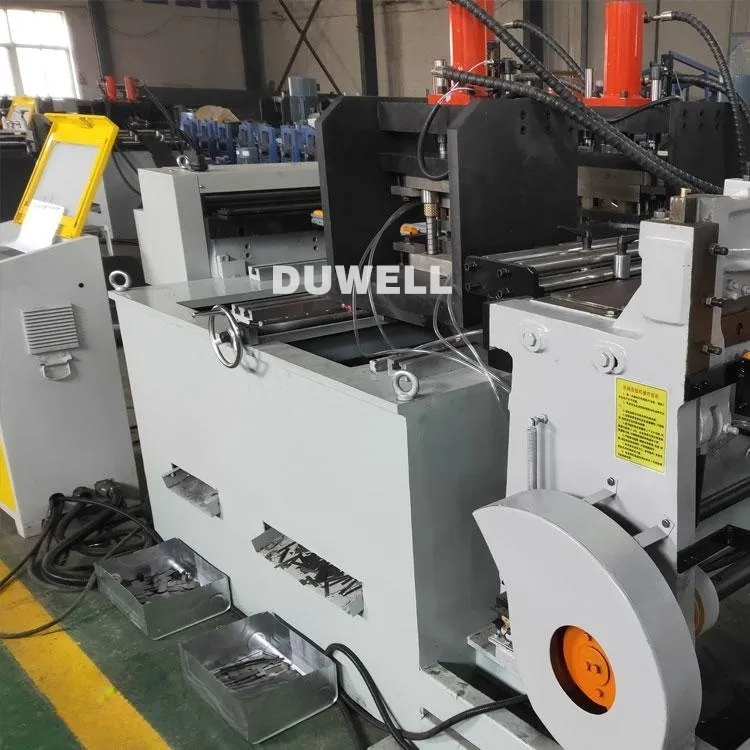

Servo feeder and pressing machine: Punch the holes on the sheet before forming.

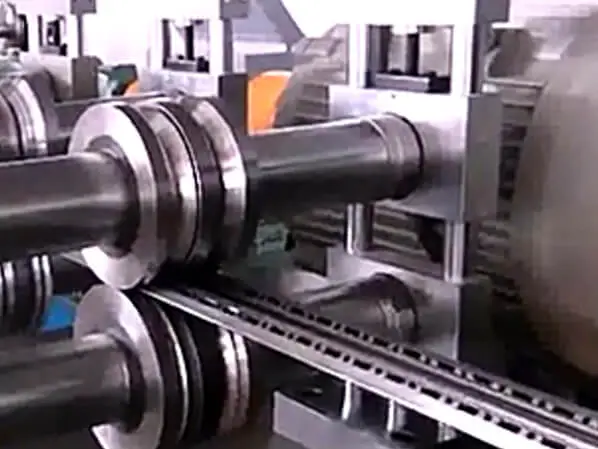

Profiling Roll Forming Machine: For precise profile forming.
Adjusting device: For final cable tray straight adjusting.

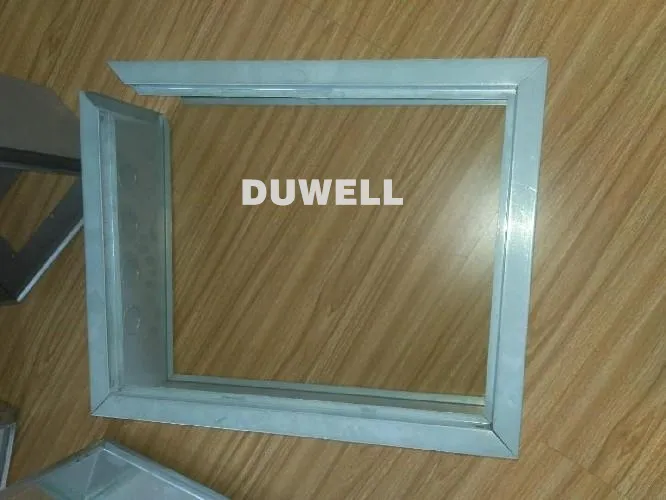

Stacking Table: Stacking the finished cable tray.
Working process
Decoiler→Leveler→servo feeder→punch → Guide device → roll forming machine → Roller welding →shear device (including knife)→ finished product rack
Machine parameters
Suitable plate of the rolling: Steel , with thickness 0.8~1.5mm,
Working speed: 8~12 meters/min
Forming stations: 18 stations
Roller material: GCr15 with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Main machine power: 11 KW
Control system: The whole machine is controlled by PLC system
The customer just need enter the web and flange sizes on the controller screen. The machine will move sizes automatically.
It needn’t change the cutting tool, the machine is cutting off the sheet before forming. It needn’t’ change cutting tool when change sizes.
The working speed is 8~12meters/min, according to the cutting length.
DUWELL gives two-years warranty period for all machines, We provide free cost after service for all machines which caused by machine quality in warranty time, with 24 hours on line services. One purchase, lifetime care for you.
