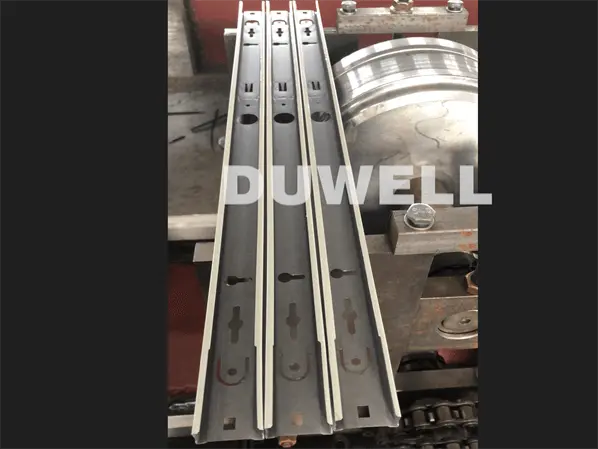

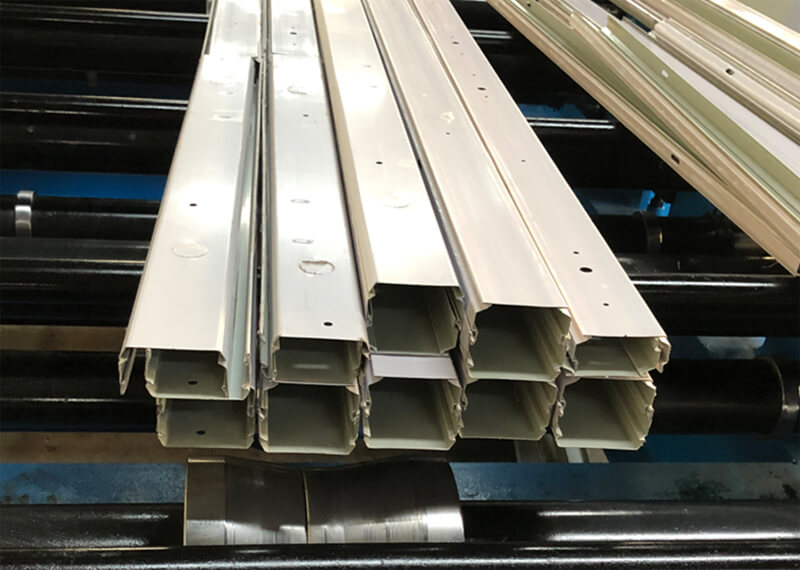

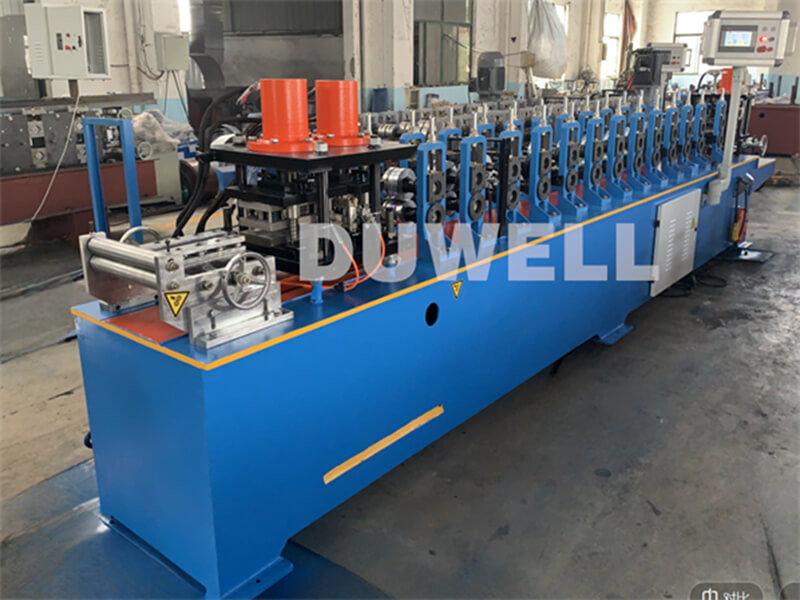

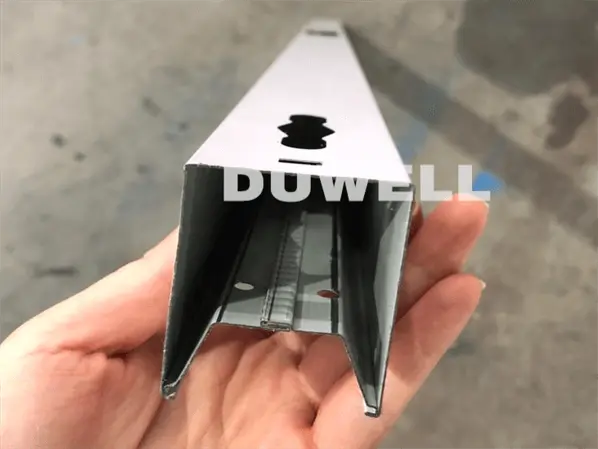

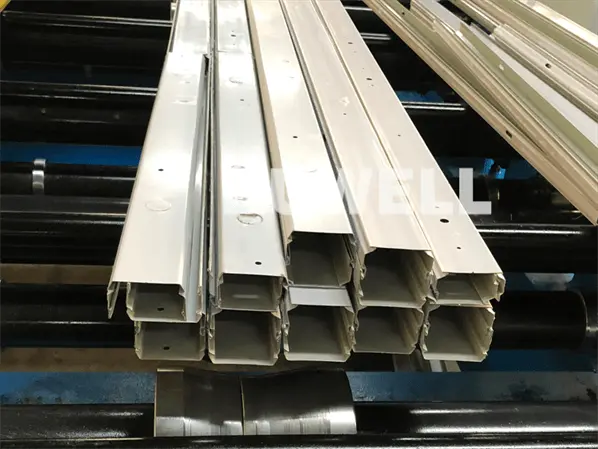

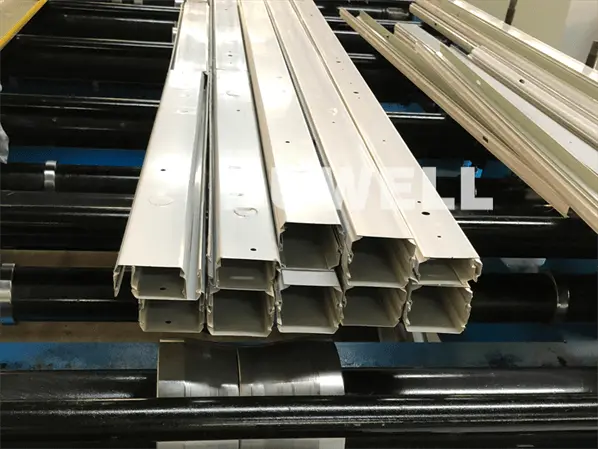

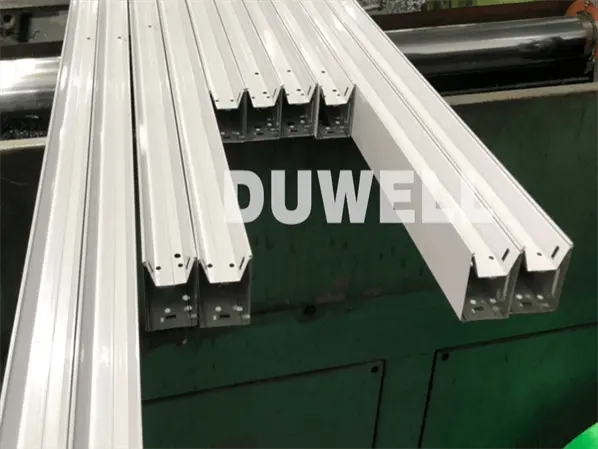

DUWELL lighting cover machine includes decoiler, punching hole, roll forming , adjusting and cutting, complete working machine. We make the machine according to customer’s lighting cover samples or shape drawings to provide the best solution.
It can work both steel or aluminum coils.
Uncoiler: Loading the steel coil

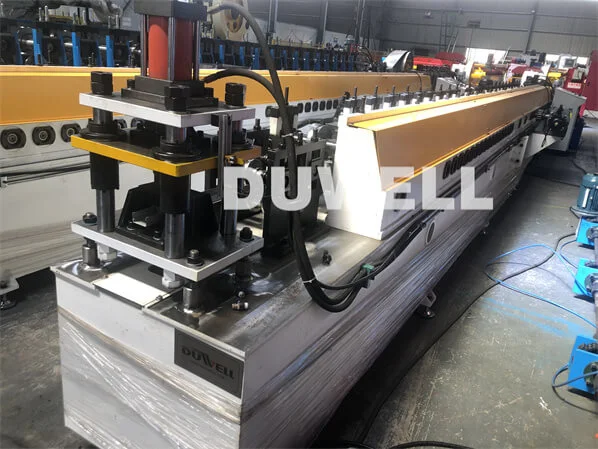

Hydraulic punching device: Punching the holes on the sheet.

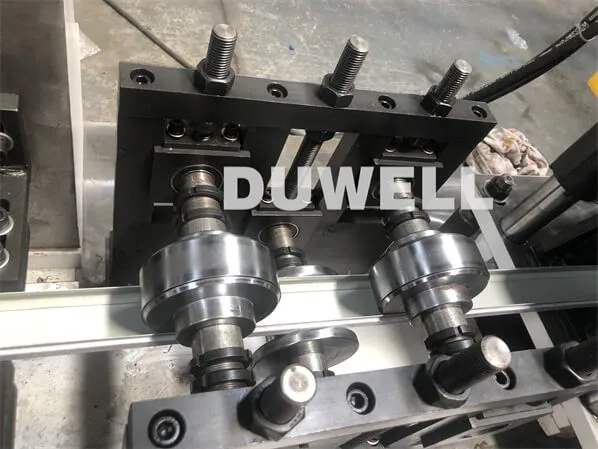

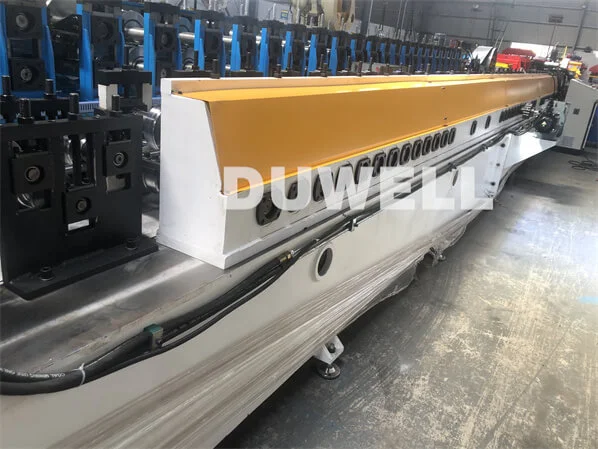

Profiling Roll Forming Machine: For precise profile forming.
Adjusting device: For final cable tray straight adjusting.
Cutting device: Cut off the finished products according to setting length.

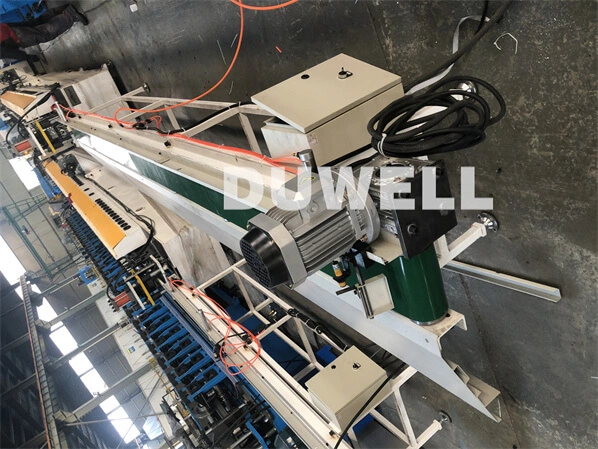

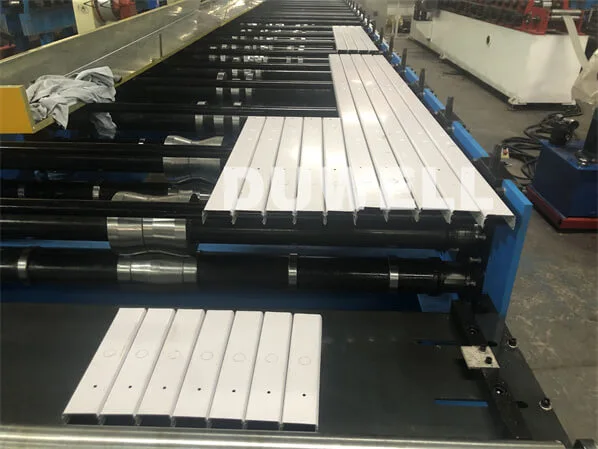

Stacking Table: Stacking the finished products.
Working process
Decoiler —→Guiding —→ Hydraulic punching device—→ Roll-forming Machine ——→Adjusting —→Hydraulic cutting —→Run out table
Machine parameters
Suitable plate of the rolling: Steel , with thickness 0.3~0.6mm,
Working speed: 8~12 meters/min
Forming stations: 14 stations
Roller material: GCr15 with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Main machine power: 7.5 KW
Control system: The whole machine is controlled by PLC system
Yes, this machine includes the punching device in the machine. It is complete automatic machine including forming, punching holes and cutting in one machine.
The customer only need set the rail length and quantities on the controller screen. The machine will work automatically. It only need one operator.
The working speed is 8~12meters/min, according to the cutting length.
