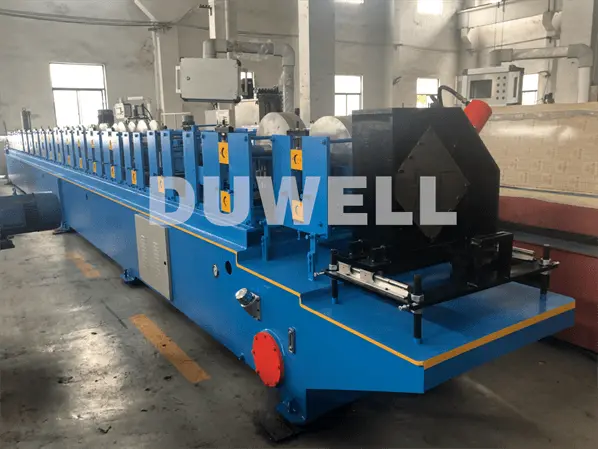

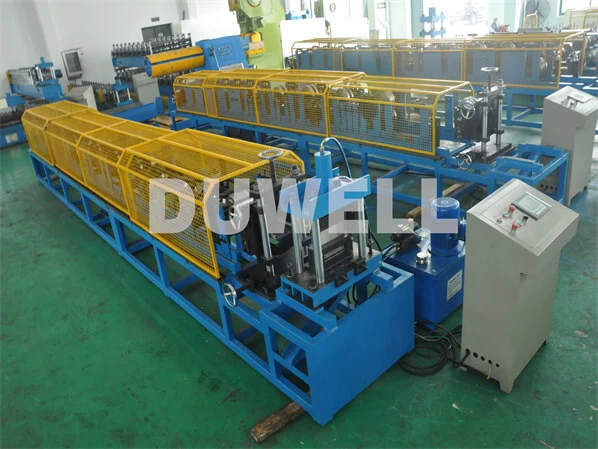

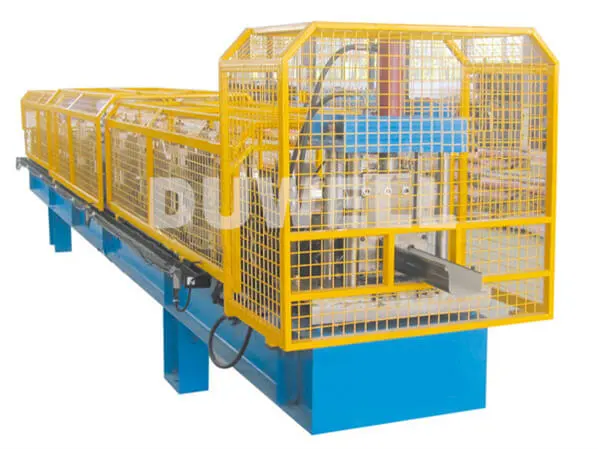

Gutter roll forming machine consists decoiler, roll forming , cutting and out table, complete production line, controlled by PLC system. The customer just set the length and numbers on controller. Also we can make different gutters in one machine, by quick change (Change cassette), to save cost and space for customers.
Uncoiler: Loading the steel coil
Guiding : Guide in the material

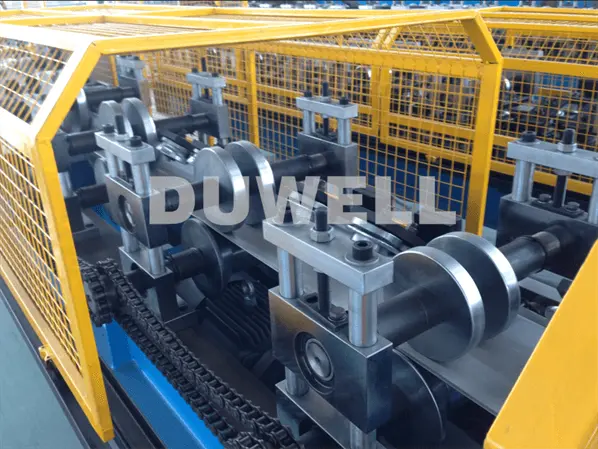

Profiling Roll Forming Machine: For precise profile forming.

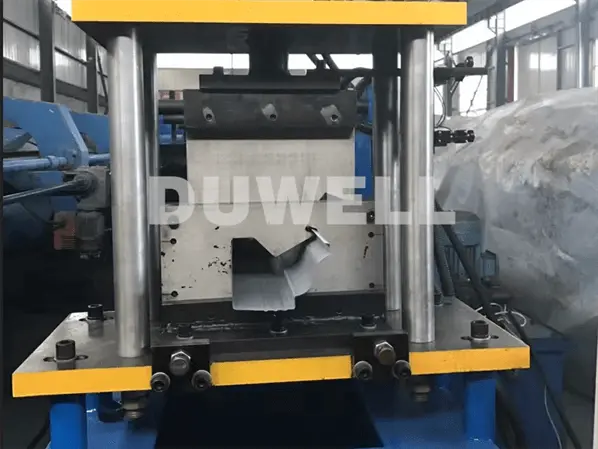

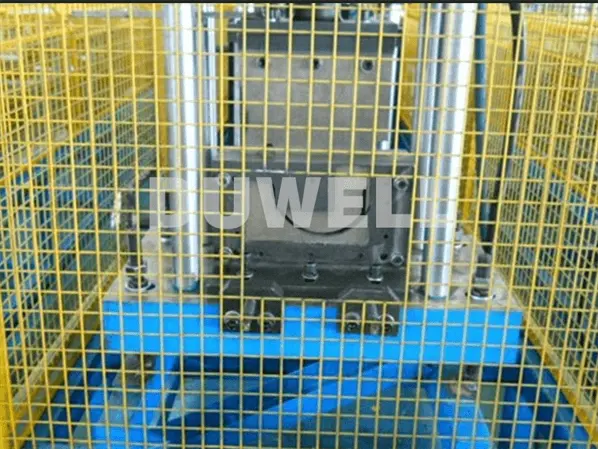

Hydraulic cutting device: For precise cuts.
Stacking Table: Stacking the finished products
Working process
Decoiler —→ Guiding—→Roll-forming Machine—→ Adjusting device—→ Hydraulic cutting—→ Out table
Machine parameters
Suitable plate of the rolling: PPGI or GI with thickness 0.5~0.8mm,
Working speed: 15 meters/min
Forming stations: According to customer’s roof profiles
Roller material: Cr12Mov (Cr12) with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Main machine power: 5.5 KW
Control system: The whole machine is controlled by PLC system.

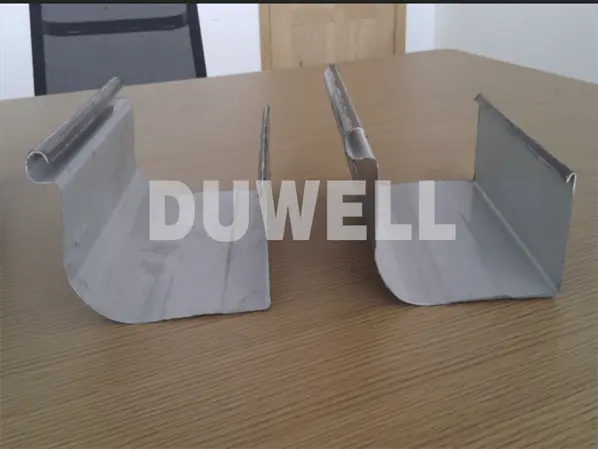

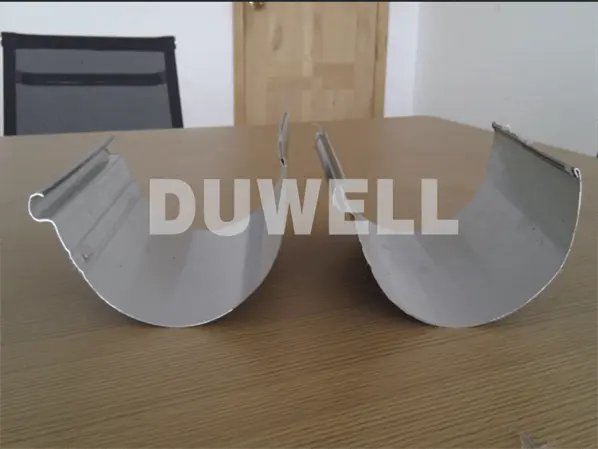

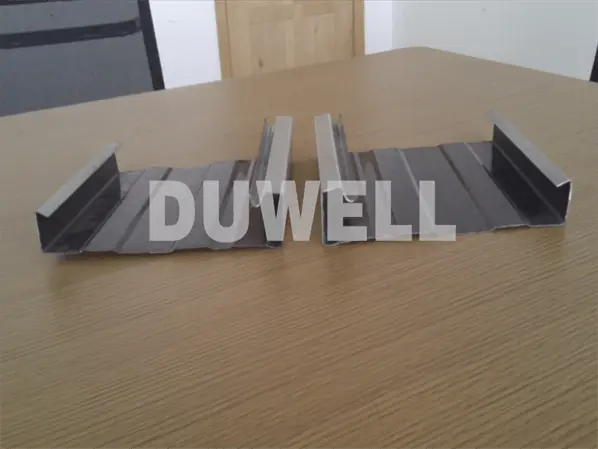

We make the machine according to customer’s required profiles or samples.

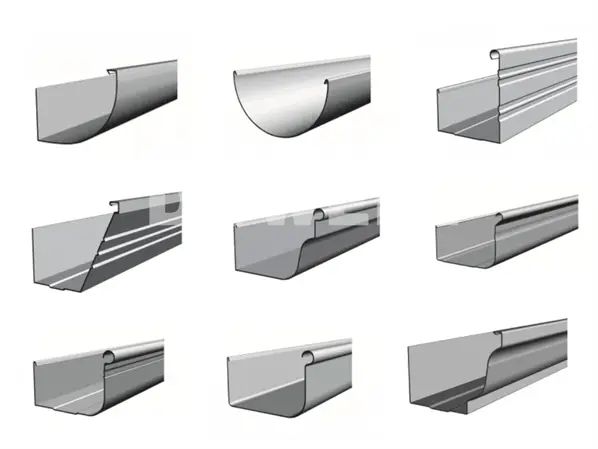

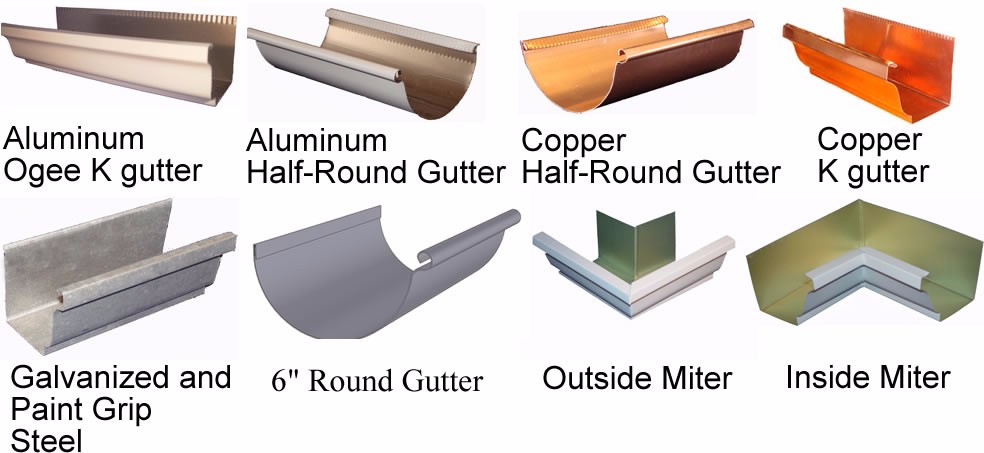

Yes, We can make different gutter profiles in one machine by quick change construction （Change cassette type）to save cost and space for customers.
