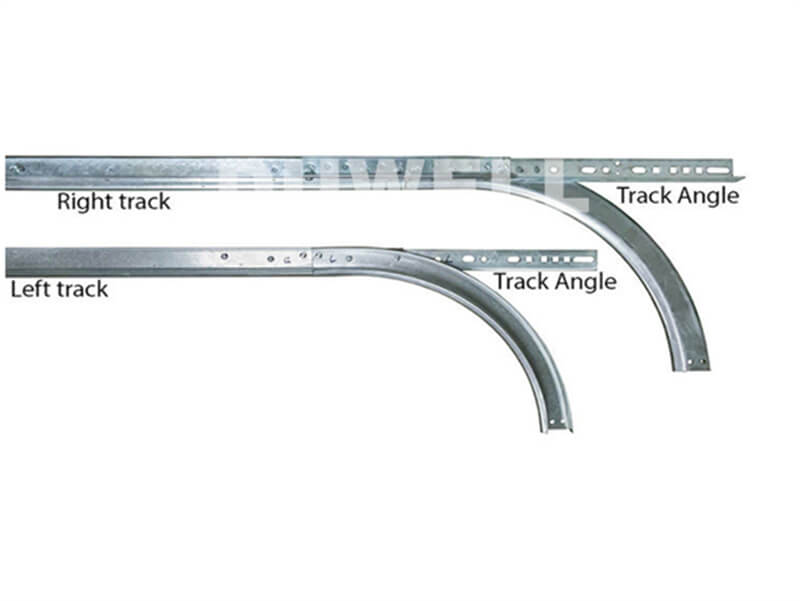

DUWELL is professional in the whole range machines of garage door panel, including 2” and 3” door tracking machine, tracking bending machine, angle machines etc. With full punching capabilities for lock hole, jamb bracket and angle brackets.

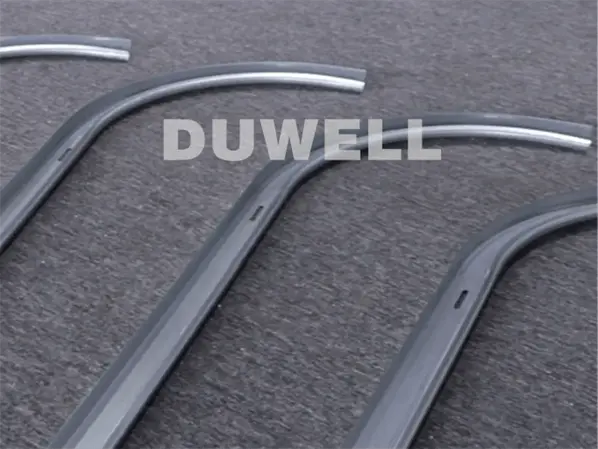

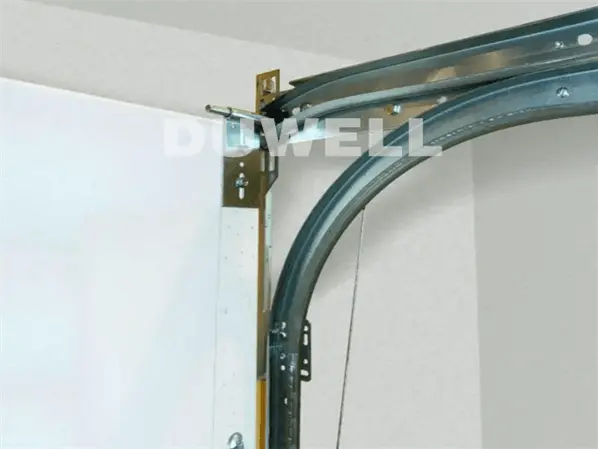

Door track and rail roll forming machines are specialized equipment designed to produce high-quality, precise, and durable door tracks and rails used in sliding doors, industrial doors, and overhead garage doors. These machines utilize a continuous roll forming process to shape metal coils (such as steel, aluminum, or galvanized steel) into customized profiles with consistent dimensions and smooth finishes.
Uncoiler: Loading the steel coil
Profiling Roll Forming Machine: For precise profile forming.
Adjusting device: For final slats straight adjusting.

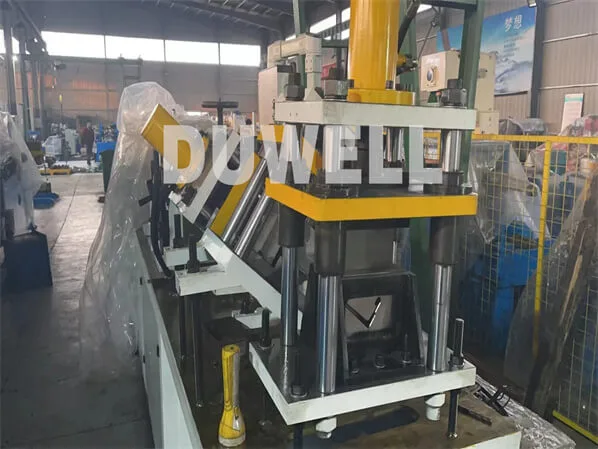

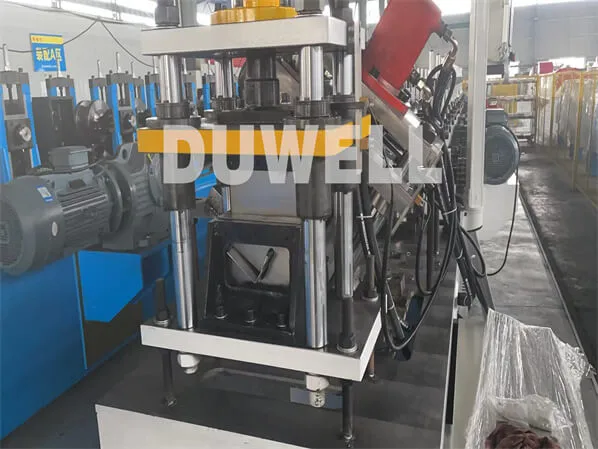

Hydraulic punching device: Punch holes on the profile
Hydraulic cutting: For precise cuts.

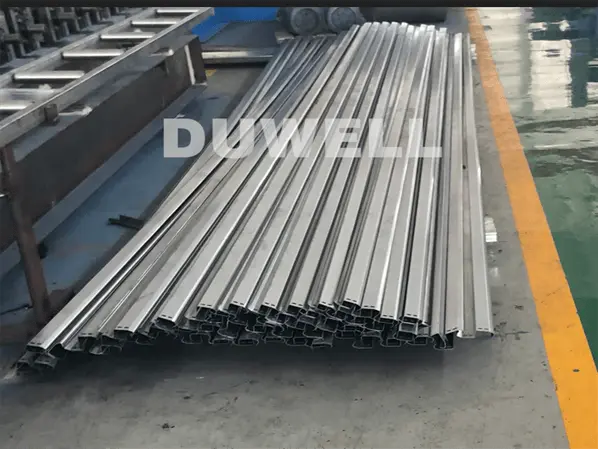

Out Table: Stacking the finished slats.
Main specification
Suitable plate: Galvanized steel thickness: 0.8~1.2mm
Material of rollers: Gcr15, with heat treatment and chrome plating on the surface. HRC58~62
Material of shaft: 45# steel, with heattreatment ,
Cutting: Hydraulic cutting
Material of cutting knife: Cr12Mov, Quench HRC58-62
The whole machine is controlled by PLC.
Working schedule
Put the steel coil on the un-coiler—→Guiding—→Roll former—→Hydrualic punching—→Hydraulic cutting—→Out table

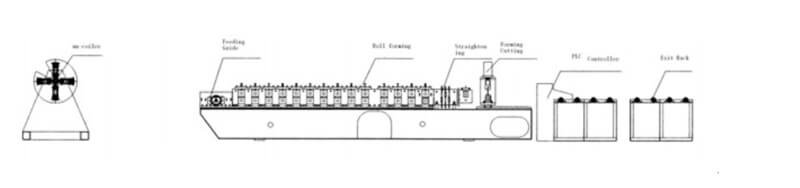

Simple drawing of machine

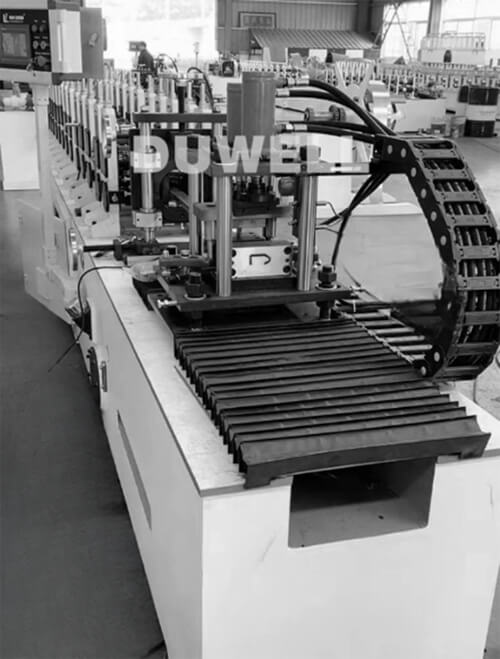

Machine picture

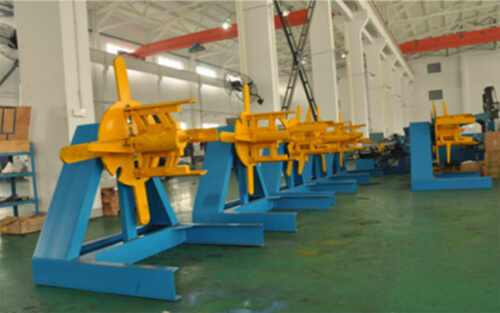

decoiler

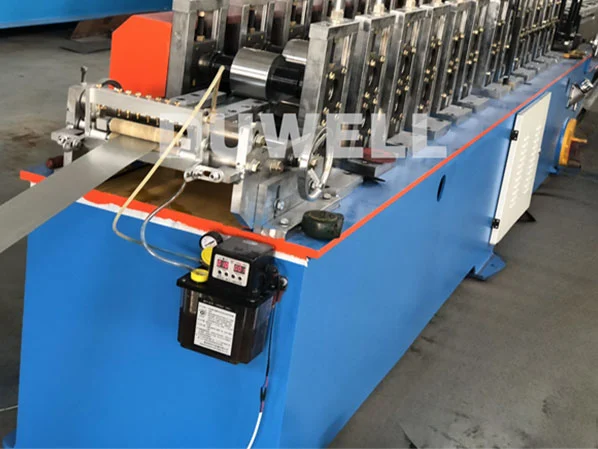

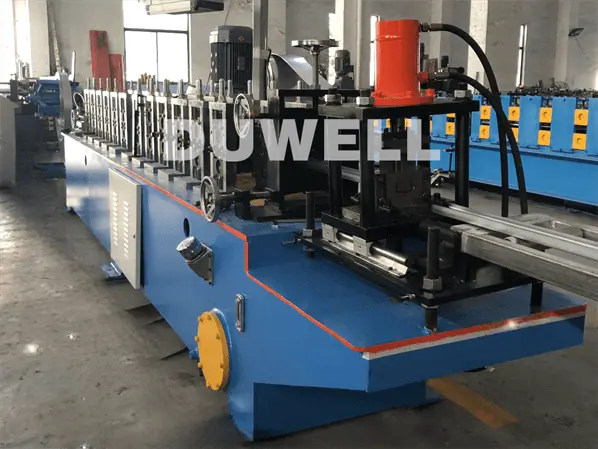

Roll former
✔ High Precision – Ensures uniform dimensions and smooth edges for seamless door operation.
✔ Customizable Profiles – Adjustable rollers and tooling to produce various track and rail designs.
✔ Efficient Production – High-speed forming with minimal material waste, reducing production costs.
✔ Durable Construction – Made with high-quality materials for long-lasting performance.
✔ Automated Cutting – Optional servo or hydraulic cutting systems for precise length control.
✔ User-Friendly Operation – Easy setup, adjustment, and maintenance for optimal productivity.
Our machines can process various metals, including galvanized steel, stainless steel, aluminum, and pre-painted steel coils, depending on the application requirements.
Our standard machines can handle metal thicknesses ranging from 0.3mm to 3.0mm, but customized solutions are available for thicker materials.
Our machines are fully customizable with interchangeable rollers and tooling, allowing for multiple profile designs with quick changeovers.
Production speeds vary based on material and profile complexity, but typically range from 6 to 25 meters per minute.
Yes, we provide servo following cutting, hydraulic cutting, or pneumatic saw cutting systems for precise length control and reduced manual labor.
Our machines ensure high precision (±0.1mm tolerance) for consistent and smooth door tracks and rails.
Regular lubrication, roller inspection, and cleaning are recommended. Our machines are designed for easy maintenance with minimal downtime.
Yes, our machines can be equipped with auto-feeding, stacking, and packaging systems for full automation.
Yes, we offer on-site installation, operator training, and 24/7 technical support to ensure smooth operation.
