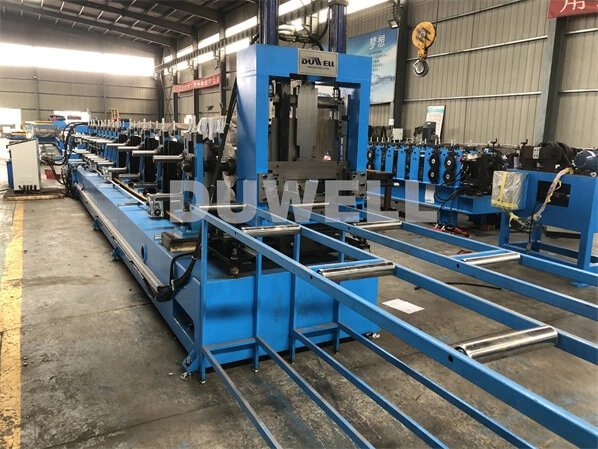

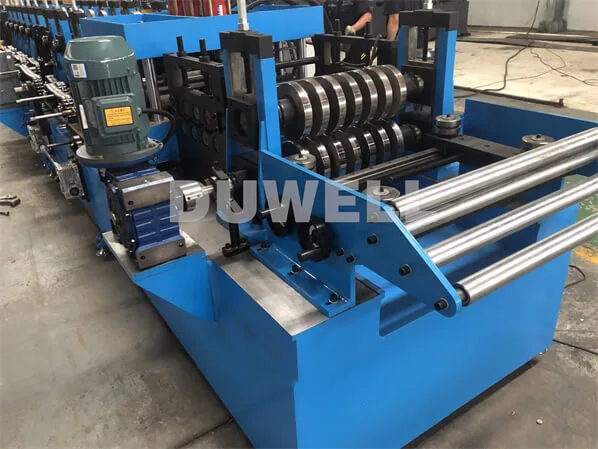

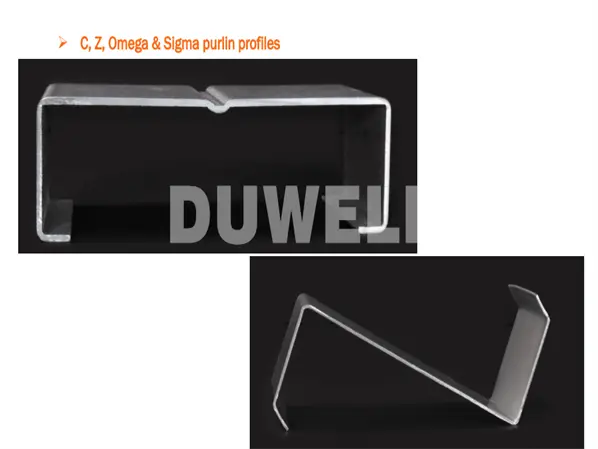

DUWELL CZ purlin machine can interchange the C purlin and Z purlin in one machine with short time. And adjust the sizes automatically. The customer just need set the web and flange size on the controller, the machine will change the sizes automatically. The machine with universal cutting device, no need change cutting tool when change sizes.
Our CZ Purlin Roll Forming Machine is designed for the continuous production of high-quality C and Z-shaped purlins used in steel structures, roofing, and industrial buildings. Built with advanced technology and robust engineering, this machine ensures high precision, durability, and cost-effective production of purlins for various construction applications.
✔ Multi-functional Design – Produces both C & Z purlins with quick adjustments.
✔ High-Speed Production – Capable of forming purlins at speeds of 8-15 meters per minute (adjustable based on material thickness).
✔ PLC Control System – Ensures automated, stable, and error-free operation with a user-friendly touchscreen interface.
✔ Hydraulic Cutting System – Provides clean, burr-free cuts with precise length control.
✔ Heavy-Duty Construction – Made from high-grade steel and hardened rollers for long-lasting performance.
✔ Adjustable Roller Stations – Allows easy switching between different purlin sizes and thicknesses (typically 1.5mm–3.0mm).
✔ Automatic Stacking System (Optional) – For organized collection of finished purlins.
Material Width: 100mm–300mm (adjustable)
Material Thickness: 1.5mm–3.0mm (galvanized steel, cold-rolled coil)
Roller Stations: 16–24 stations (depending on model)
Power Supply: 380V / 50Hz (customizable)
Main Motor Power: 7.5kW–15kW
Pre-engineered buildings (PEB)
Warehouses, factories, and industrial sheds
Roofing & wall support systems
Solar panel mounting structures
Working process
5 ton decoiler —→ Guiding and leveling device—→Hydraulic punching device—→Roll-forming Machine —→Adjusting —→ Hydraulic cutting—→ Run out table
Machine parameters

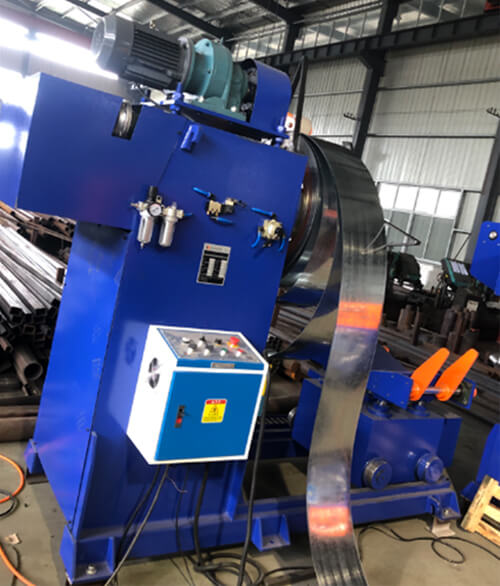

5 ton decoiler
Manual decoiler: hydraulic expanding.
Capacity: Max. 5 tons
Expanding range: ф480-520 mm ( can be made according to customer’s requirement)
Leveling device
Leveling: to make the material flat before entering the punching device
Seven rolls: four upper, five lower
Hydraulic punching device

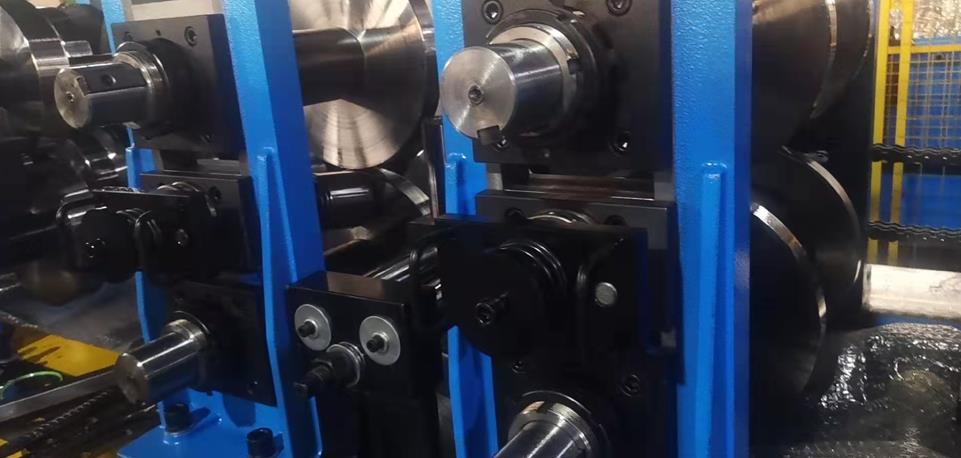

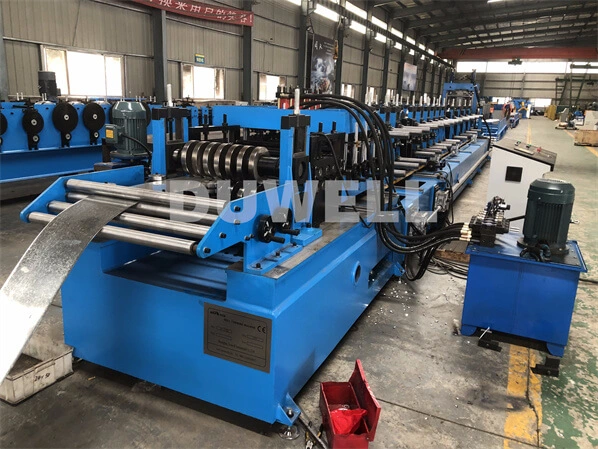

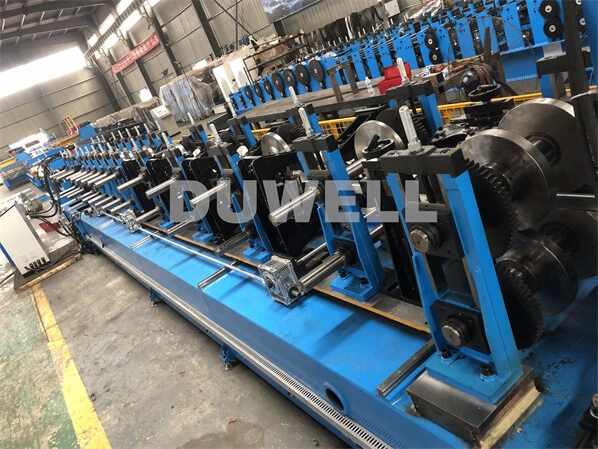

Roll forming machine
Suitable plate of the rolling: galvanized steel or cold/hot roll steel, with thickness 1.0~3.0mm,
Working speed: Approx. 15~25meter/min
Forming stations: 18 stations
Roller material: Cr12Mov (Cr12) with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Main machine power: 18.5 KW
Control system: The whole machine is controlled by PLC system, brand: Delta

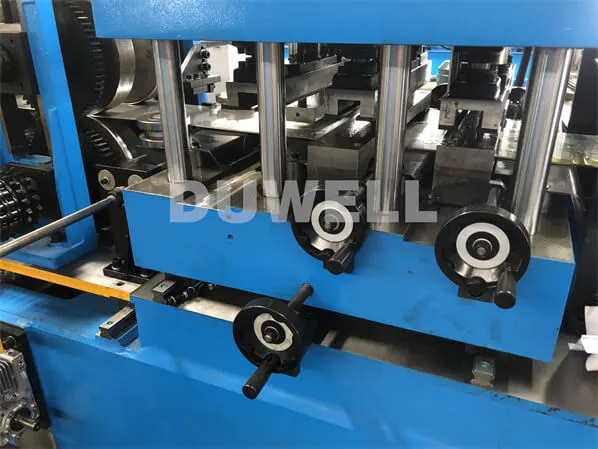

Adjusting part

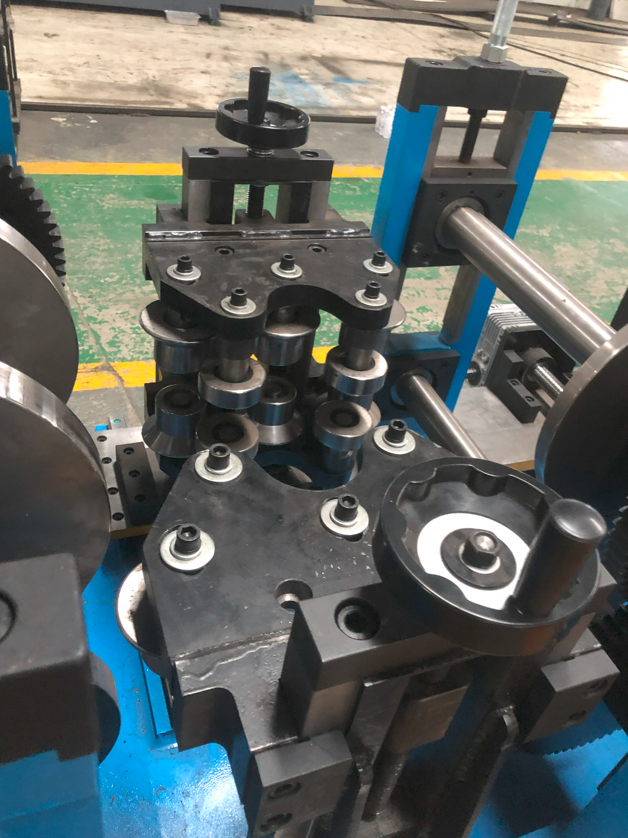

CZ interchage part

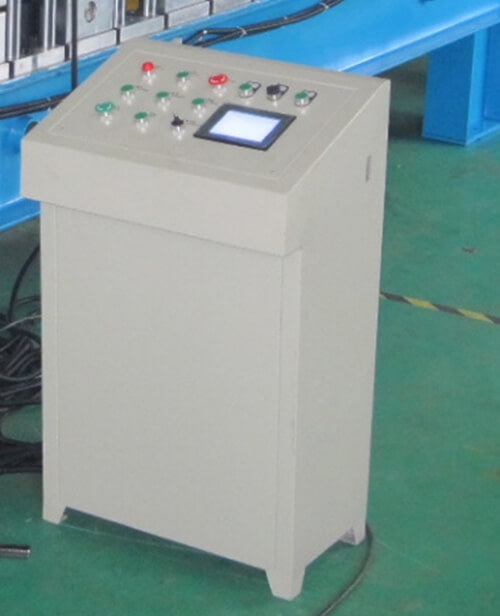

PLC control cabinet
It just need rotate two sets of rollers. Just need several minutes.
The customer just need enter the web and flange sizes on the controller screen. The machine will move sizes automatically.
It needn’t change the cutting tool, we use universal cutting device, the customer just need adjust the cutting tool to suit the purlin sizes.
Our machine can form galvanized steel, pre-painted steel (PPGI/PPGL), stainless steel, and aluminum coils, with typical thicknesses ranging from 1.0mm to 3.0mm (customizable based on requirements).
Standard CZ purlin sizes include:
CZ80, CZ100, CZ120, CZ140, CZ160, CZ180, CZ200, CZ220, CZ250 (custom sizes available).
Flange width, web height, and lip length can be adjusted per customer needs.
Our machines operate at 8-25 meters per minute (depending on material thickness, purlin size, and automation level).
We offer both options:
Fully automatic: Includes auto-feeding, roll forming, punching, cutting, and stacking.
Semi-automatic: Manual feeding/cutting for cost-sensitive buyers.
Yes! Our machines can integrate punching units for pre-punched holes (round, oval, or custom shapes) at precise intervals for easy installation.
Our standard machines process 1.0mm–3.0mm steel. For thicker materials (up to 4.0mm), we offer heavy-duty configurations.
Free installation guidance (onsite or remote).
Operator training.
Lifetime technical support and spare parts supply.
