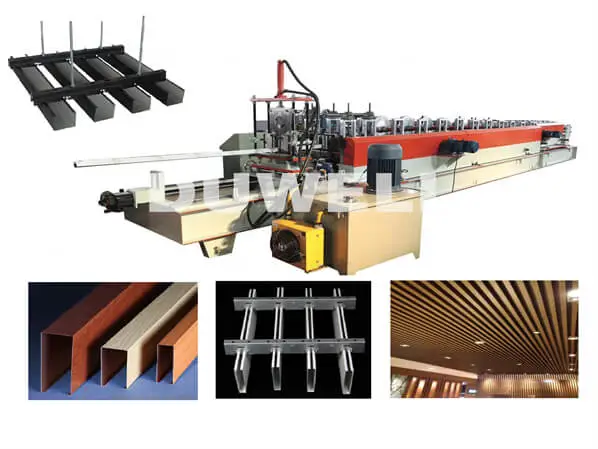

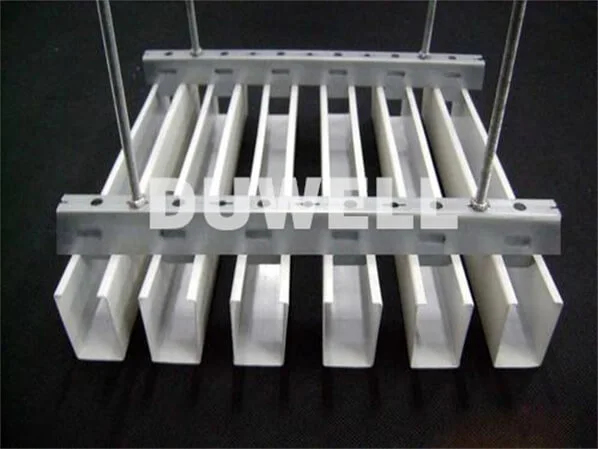

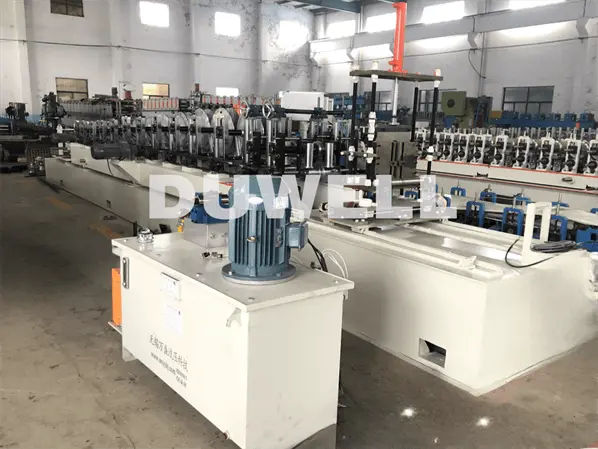

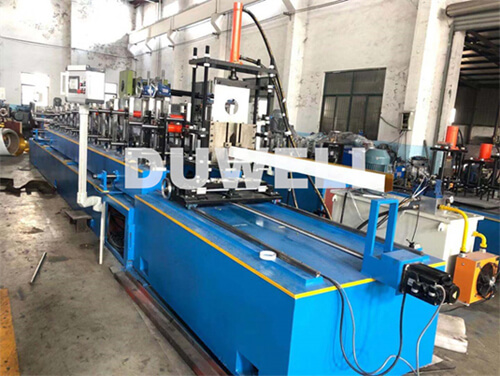

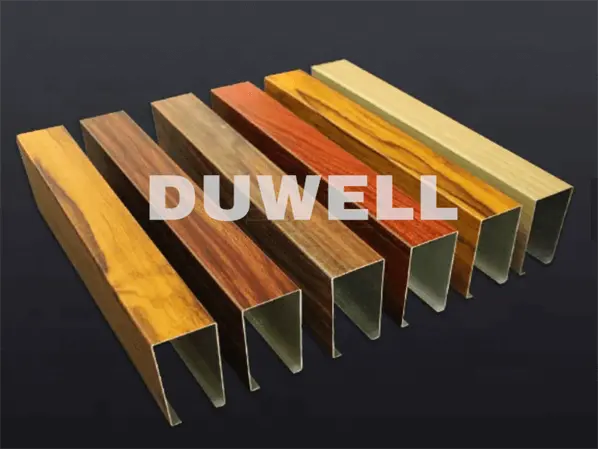

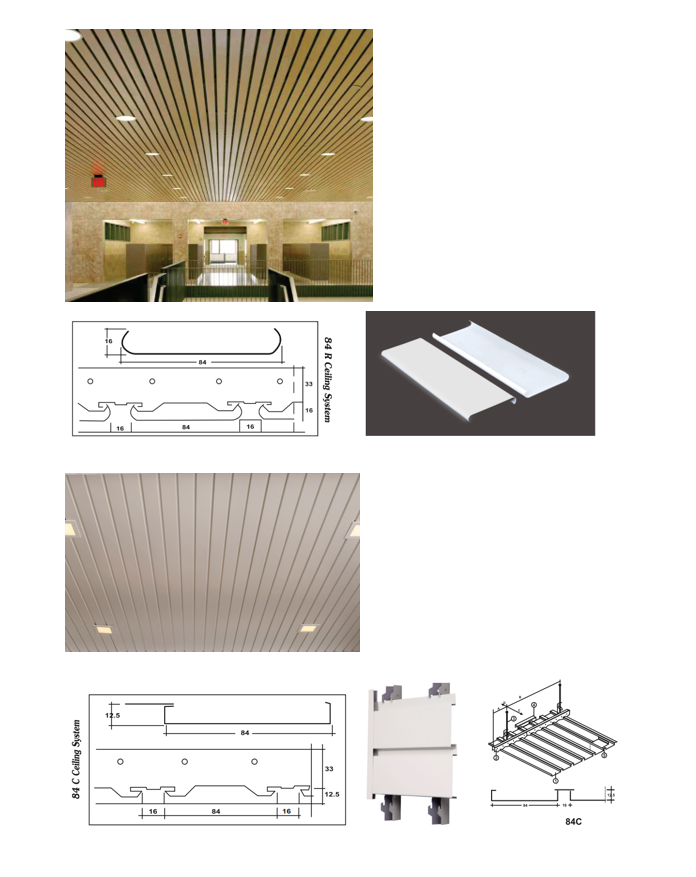

DUWELL ceiling baffle roll forming machine can make the C profile ceiling baffle with adjustable sizes 20~200mm width and 20~200mm height in one machine, both for aluminum and steel material. With thickness range 0.3~1.2mm. And adjust the sizes automatically. The customer just need set the width and height size on the controller, the machine will change the sizes automatically. The machine with universal cutting device, no need change cutting tool when change sizes. The working speed is approx. 60metersper minute.

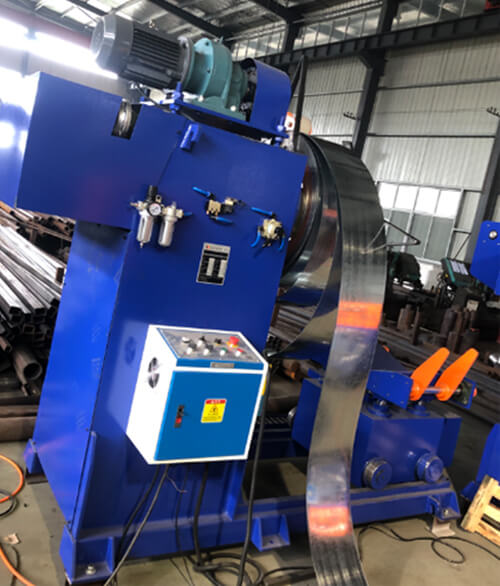

Uncoiler: Loading the steel coil
Guiding :Guiding in the material into roll former

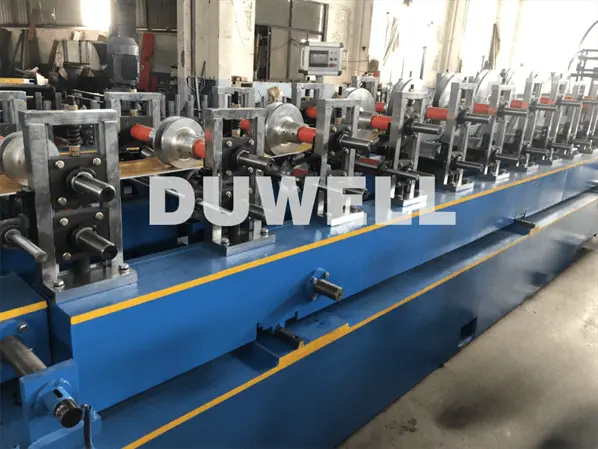

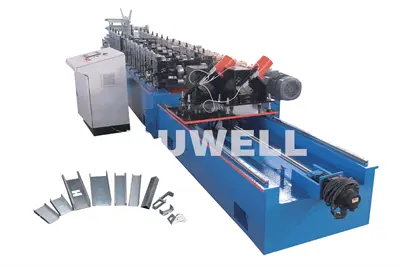

Profiling Roll Forming Machine: For precise profile forming.
Adjusting device: For final slats straight adjusting.
Servo following hydraulic cutting device: For precise cuts.
Stacking Table: Stacking the finished upright.
Working process
5 ton decoiler —→ Guidin—→Roll-forming Machine —→Adjusting —→ Hydraulic cutting—→ Run out table
Machine parameters
5 ton decoiler
Manual decoiler: hydraulic expanding.
Capacity: Max. 5 tons
Expanding range: ф480-520 mm ( can be made according to customer’s requirement)

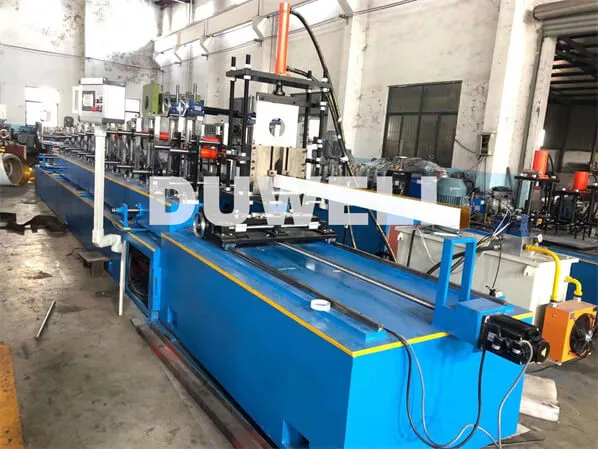

Roll forming machine
Suitable plate of the rolling: Aluminum or steel , with thickness 0.3~1.2mm,
Working speed: 50~60 meters/min
Forming stations: 18 stations
Roller material: GCr15 with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Main machine power: 7.5 KW
Control system: The whole machine is controlled by PLC system, brand: Delta
The customer just need enter the web and flange sizes on the controller screen. The machine will move sizes automatically.
It needn’t change the cutting tool, we use universal cutting device, the customer just need adjust the cutting tool to suit the purlin sizes.
The working speed is 50~60 meters/min, according to the cutting length.
